SPECIFICATIONS

Brand Name: Hi-Link

Choice: yes

Comparison speed: <0.8s

FAR: <0.0001%

FRR: <3%

High-concerned chemical: None

Model: HLK-ZW101

Module package: 21mm*5.0 mm

Origin: Mainland China

Pixels: 80*64

Pressing times: 1000000

Recording time: <0.06s

Resolution: 500DPI

Start-up time: <0.1s

Storage: 50pcs

Type: PLC Data Acquisition Modules

semi_Choice: yes

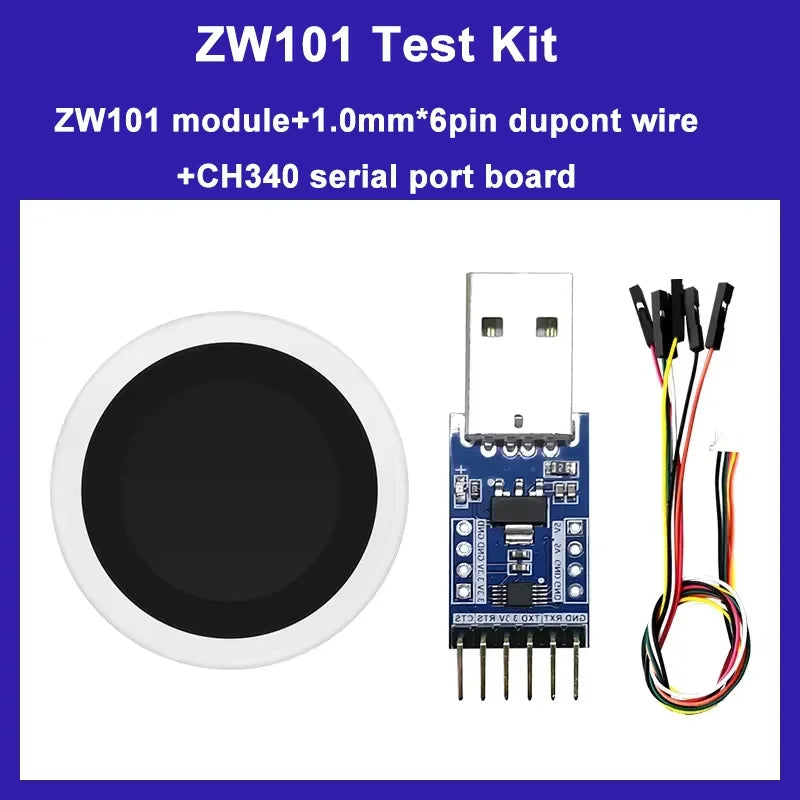

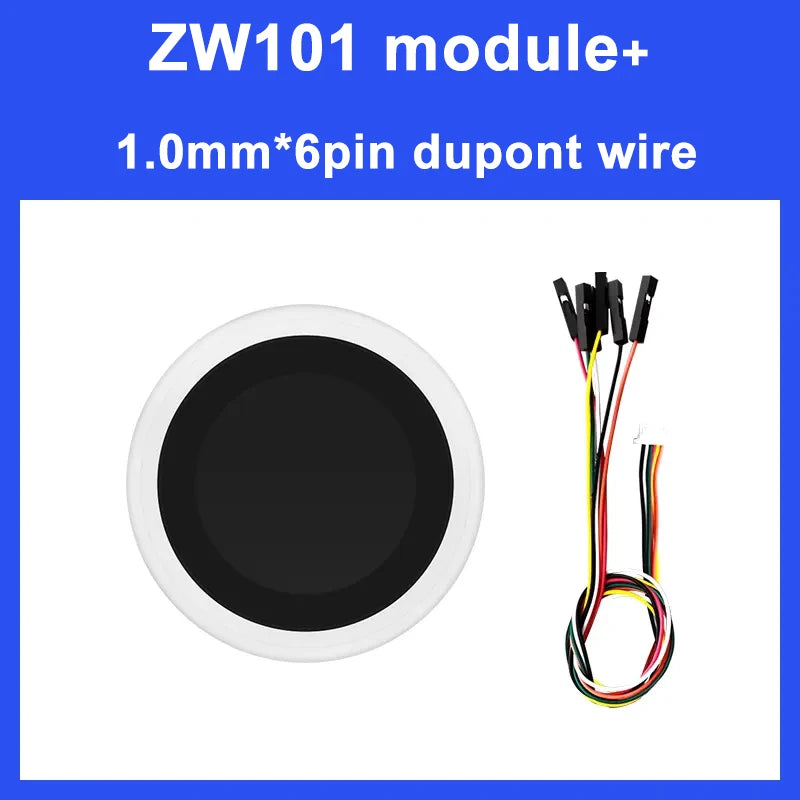

Hi-Link New ZW101 Semiconductor Finger Recognition Sensor Module

ZW101 is an all-in-one semiconductor fingerprint processing module, which consists of an active semiconductor fingerprint capture SENSOR and a fingerprint identification processing chip.

    Fingerprint identification algorithm chip adopts high-performance, low-power riscv core, running 360-degree adaptive self-learning algorithm. Semiconductor Sensor adopts active RF acquisition method, supports low-power finger detection, eliminates the need for external finger touch detection chip, high integration, simple product structure, improves product stability and consistency. At the same time to provide seven-color light effect, can be customized according to user needs of different colors as well as display mode.

Basic Parameters compared to ZW111

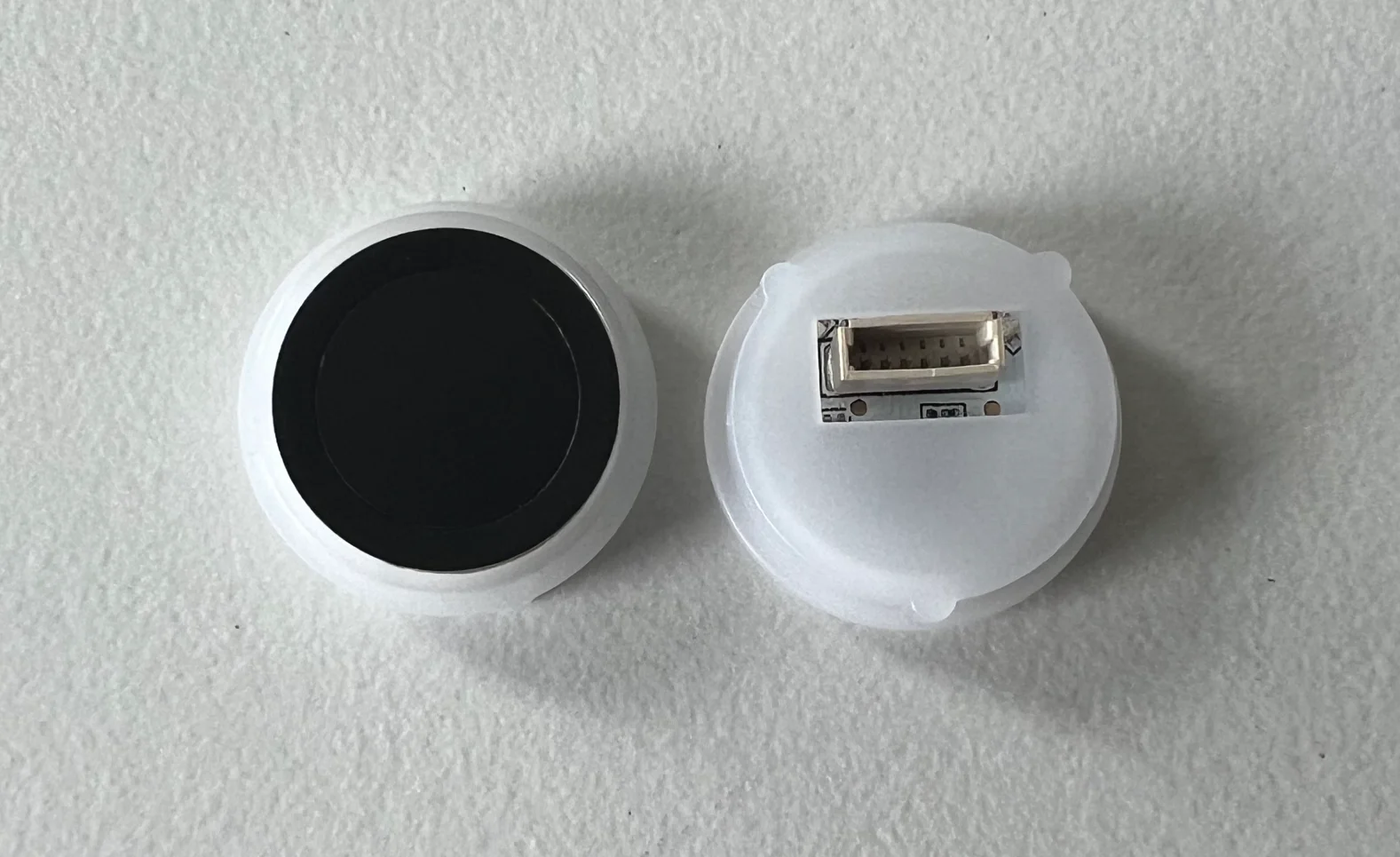

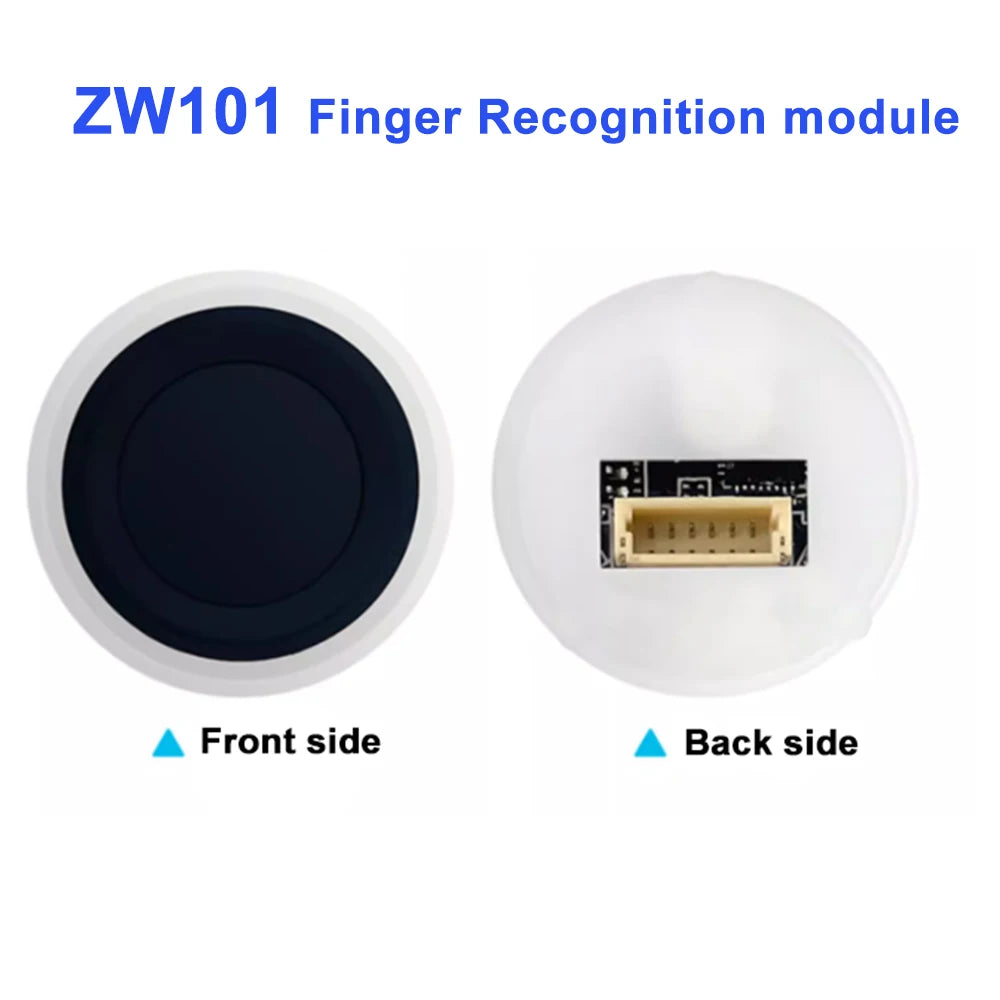

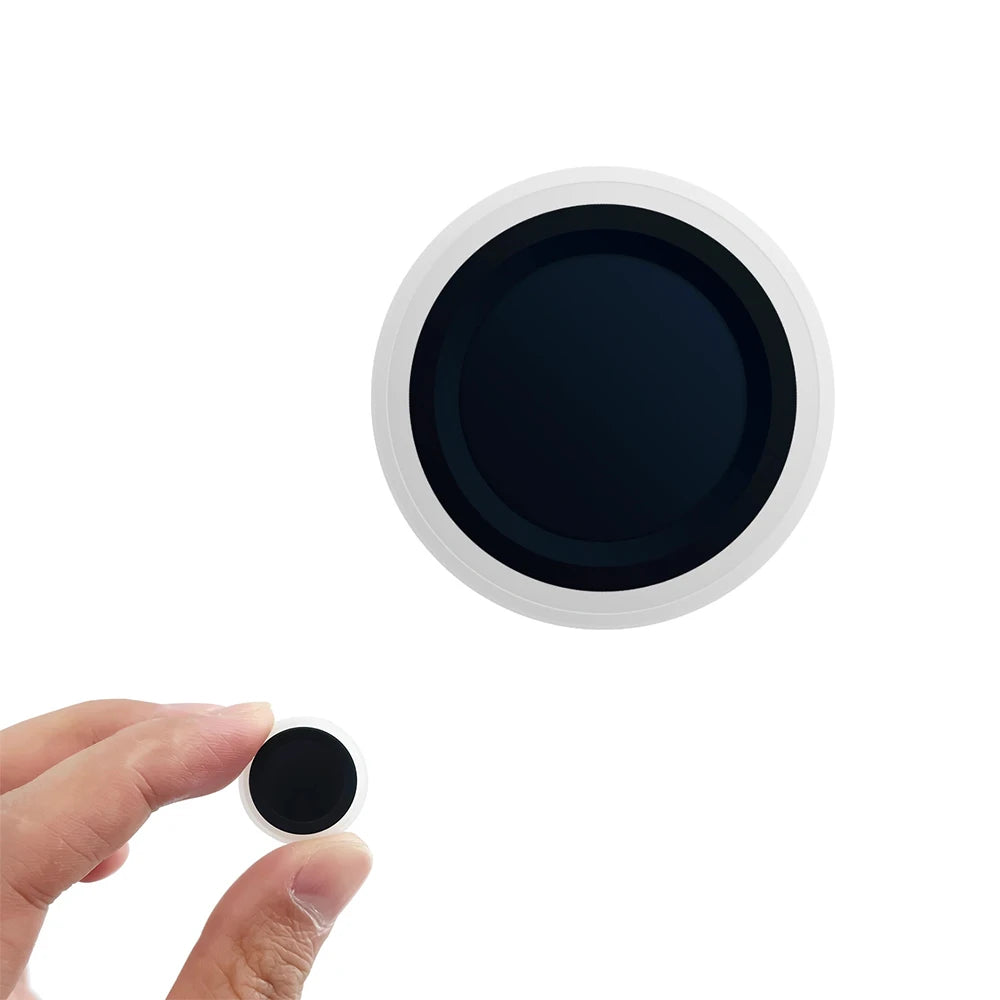

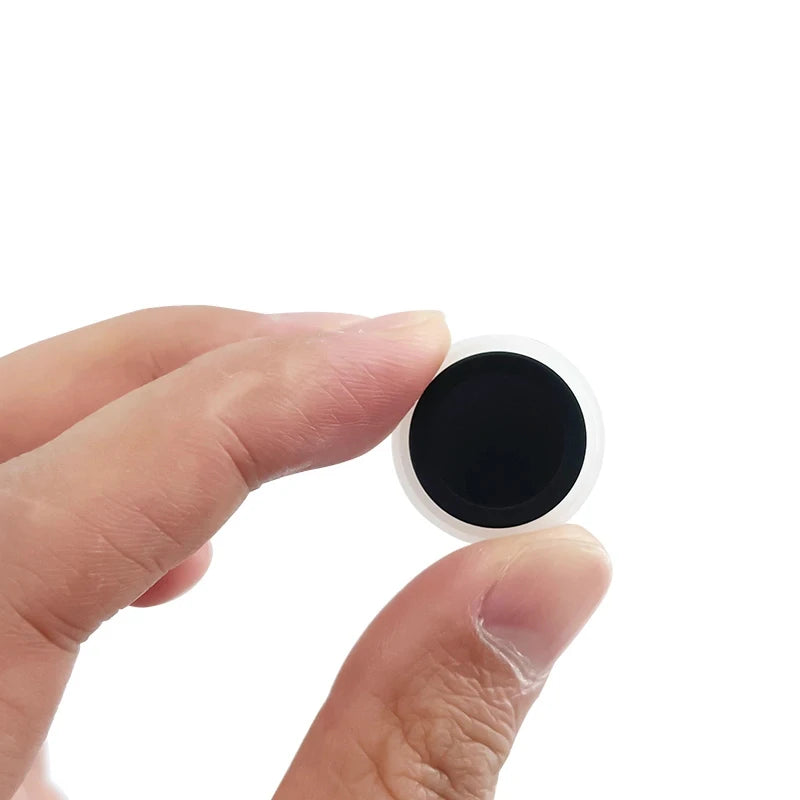

Module real picture



Low consumption design reference

* Reducing the power consumption of the fingerprint module is achieved by controlling whether the VCC power supply of the fingerprint module is working or not, and the circuit is shown in the following figure

* VIN is the client 3.3V voltage, VCC is the fingerprint module VCC, and CTRL is the client MCU I/O control signal

* CTRL controls the fingerprint module VCC on and off.
